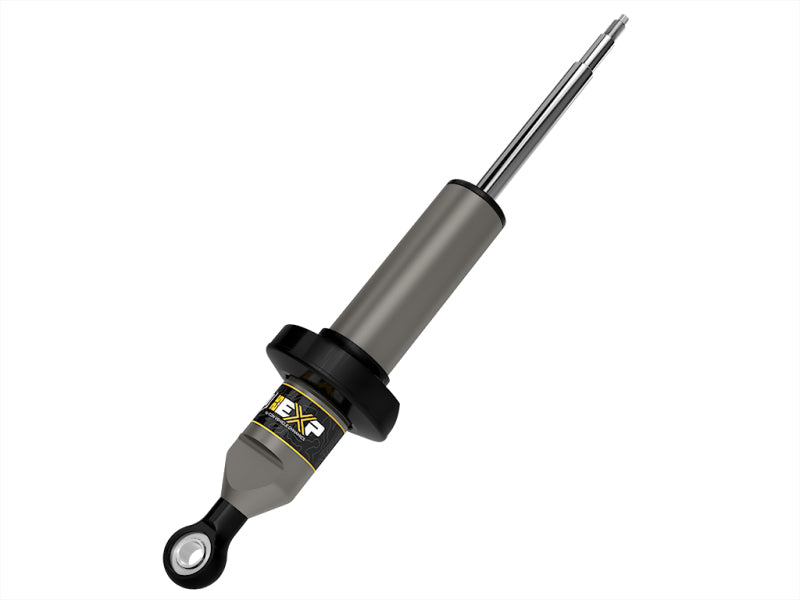

ICON 22+ Toyota Tundra 2.5 EXP Front Coilover Shock

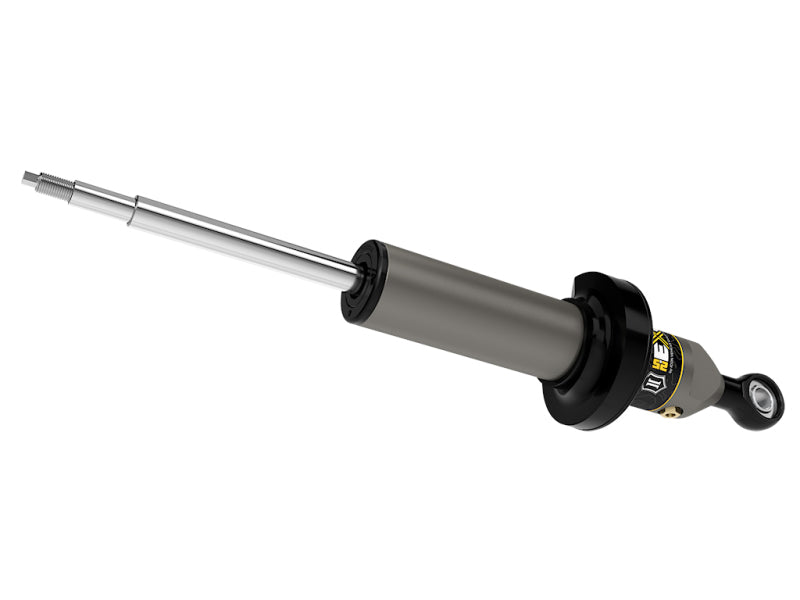

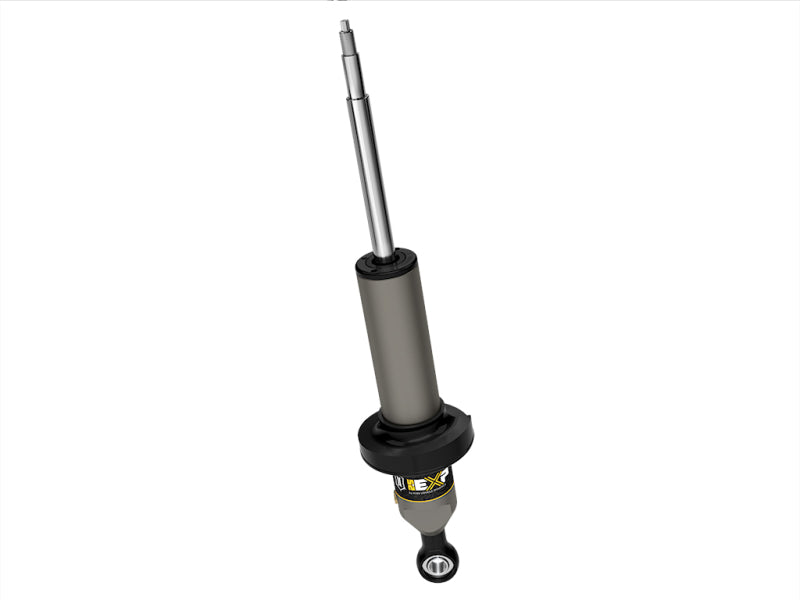

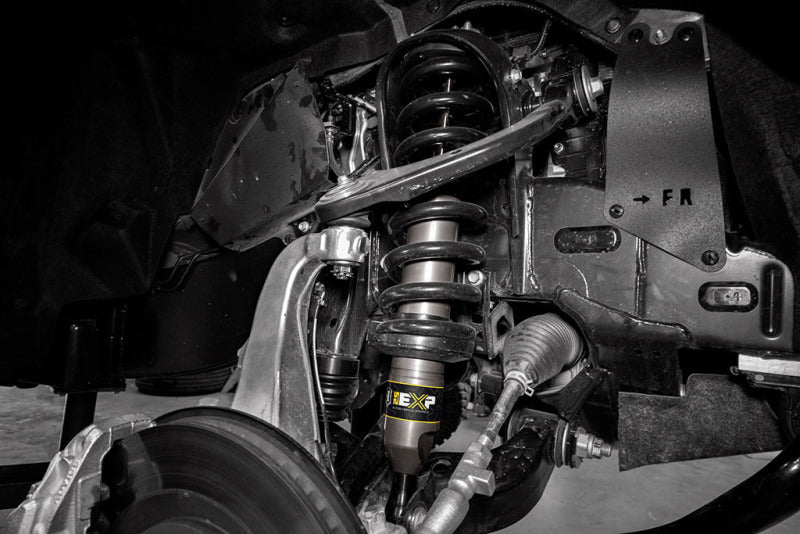

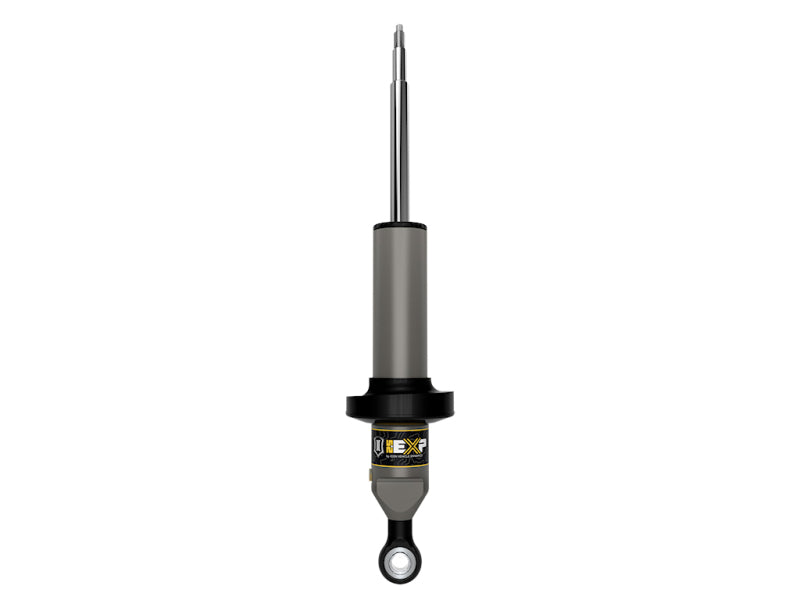

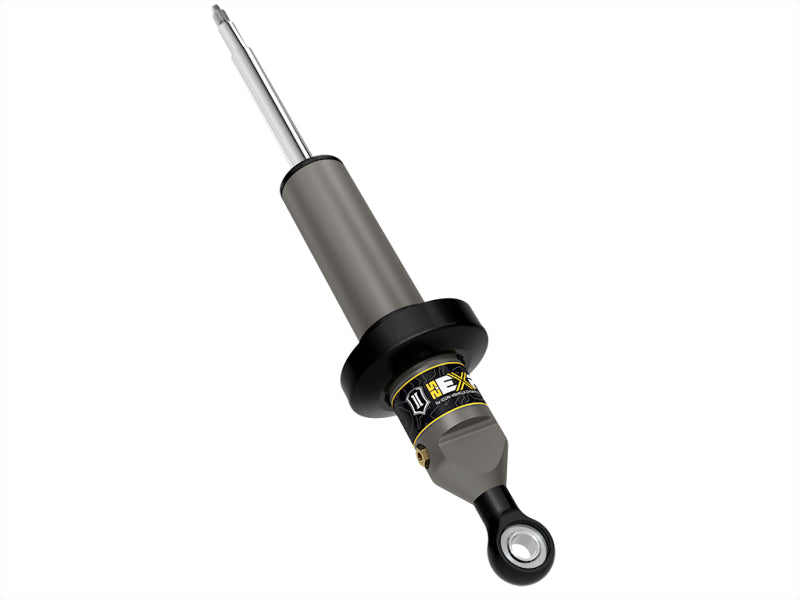

The 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the trucka**s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICONa**s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundraa**s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehiclea**s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3a*? of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Based on ICONa**s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.

Fitment:
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
