ICON 2024+ Toyota Tacoma 1.25in-3in Stage 8 Suspension System Billet w/ Triple Rate Spring

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

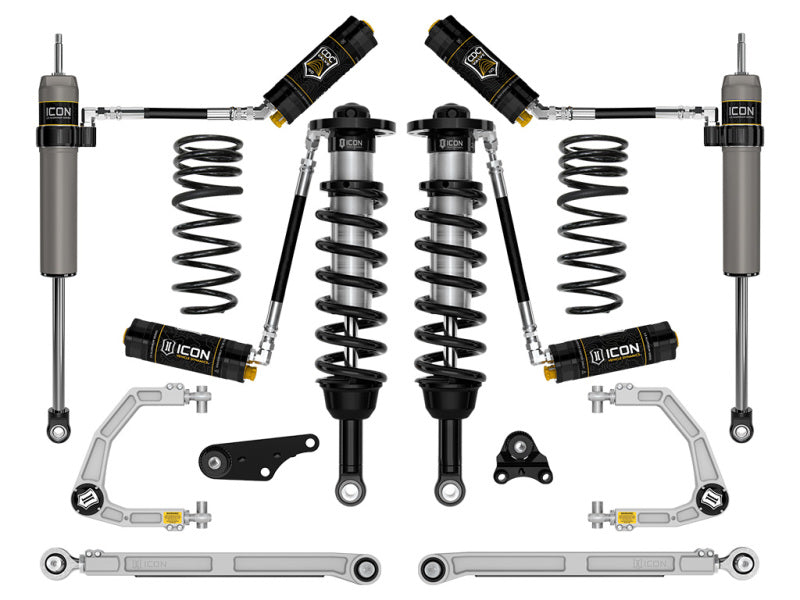

Upgrade your 2024 or 2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 8 suspension system, designed for maximum performance both on and off-road. This comprehensive kit features 2.5-inch aluminum series remote reservoir rear shocks with integrated bump zones, providing superior damping and balanced tuning for enhanced ride quality and improved shock cooling. The front coilovers are also 2.5 inches in diameter, equipped with remote reservoirs and ICON-engineered valving to optimize vehicle control and ride comfort. The front differential drop kit ensures maximum CV joint angles and increased wheel travel, making this system ideal for serious off-road driving. Constructed from corrosion-resistant CAD-plated steel and CNC-machined from 6061 aircraft-grade aluminum, each component demonstrates durability and precision engineering. The billet aluminum upper control arms (UCAs) feature the patented Delta Joint PRO with 90 degrees of articulation, offering added strength, durability, and on-vehicle caster and camber adjustment for precise alignment and drivability. Triple-rate rear coil springs deliver a lift of approximately 0.5 inches while improving load distribution and ride quality. ICON’s rear billet lower links incorporate dual-durometer greaseless bushings, FK rod ends, and on-vehicle pinion angle adjustment, facilitating optimal rear articulation and suspension tuning. All shock absorbers are equipped with CDC valves featuring ten settings of compression damping adjustment, enabling drivers to tailor performance from soft to firm. This suspension system is tailored specifically for 4WD models, providing increased wheel travel, improved damping, and superior ride quality. The kit's design emphasizes maximum off-road capability while maintaining on-road comfort, making it an ideal upgrade for serious Tacoma owners seeking reliability and performance enhancement.

Features:

• 2.5-inch aluminum series remote reservoir rear shocks with integrated bump zones for improved damping and shock cooling

• Front differential drop kit to maximize CV joint angles and wheel travel on 4WD models

• 2.5-inch front coilovers with remote reservoirs and ICON-engineered valving for superior control and ride quality

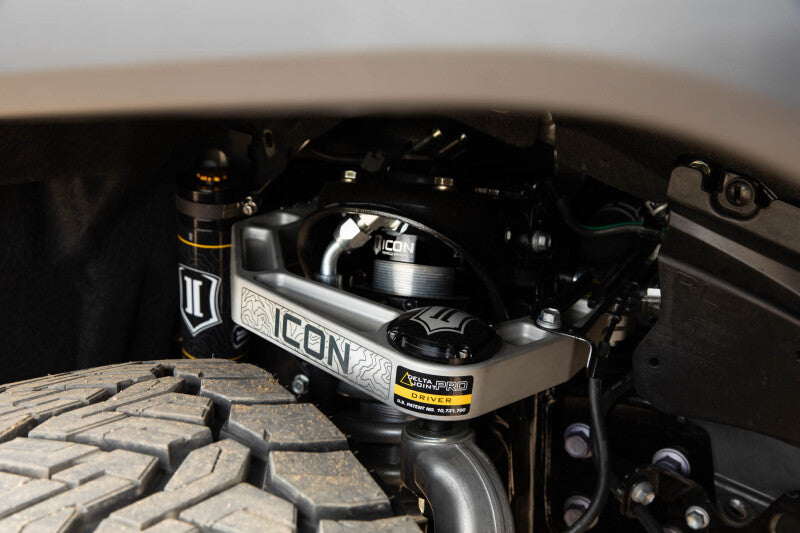

• Billet aluminum upper control arms with Delta Joint PRO for 90 degrees of articulation and adjustable camber and caster

• All shocks equipped with CDC valves offering 10 damping adjustment settings from soft to hard

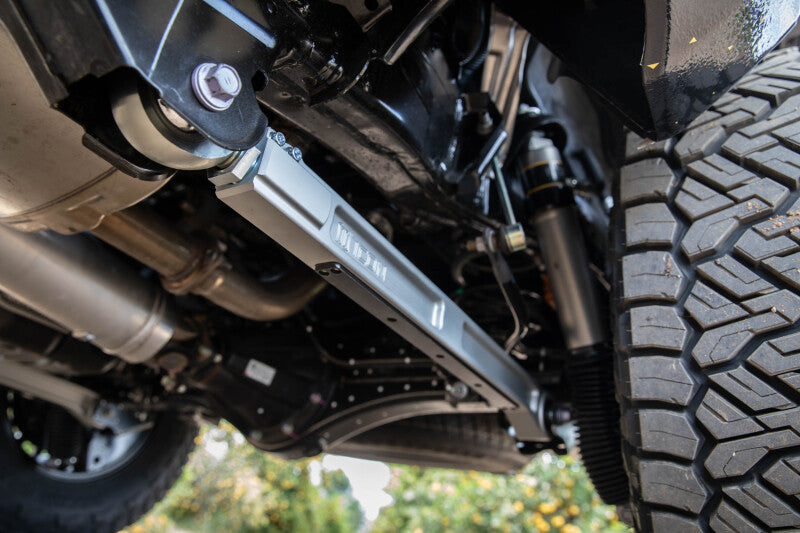

• Billet rear lower links with dual-durometer greaseless bushings and FK rod ends for enhanced articulation and pinion angle adjustment

• Triple-rate rear coil springs providing approximately 0.5-inch rear lift and improved ride stability

• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts for durability and longevity

• Adjustable coilovers offering 1.25-3 inches of front lift for versatile customization

• Constructed from CNC machined 6061 aircraft-grade aluminum for strength and precision

• Engineered for maximum wheel travel, damping ability, and off-road performance

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
