ICON 2024+ Toyota Tacoma 1.25in-3in Stage 4 Suspension System Billet

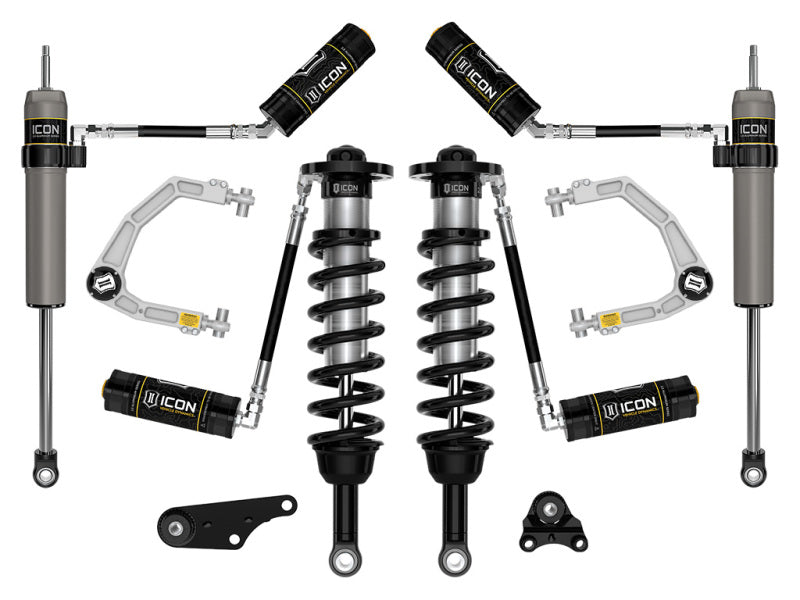

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

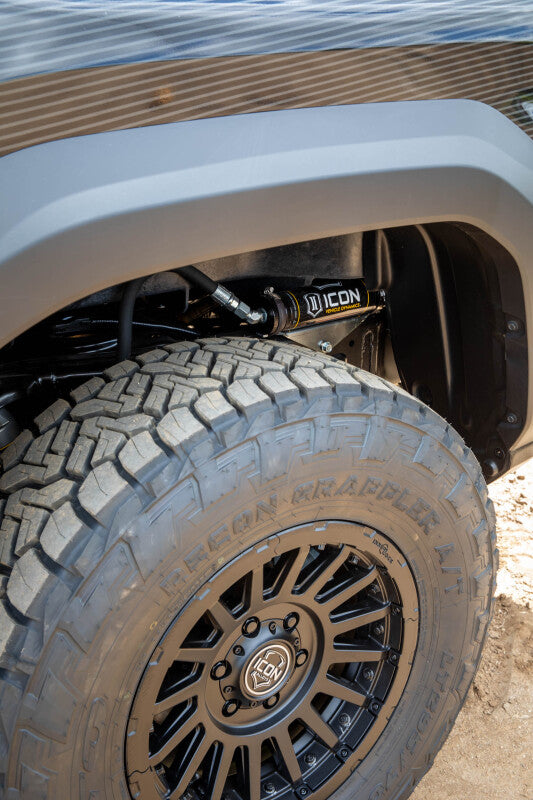

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

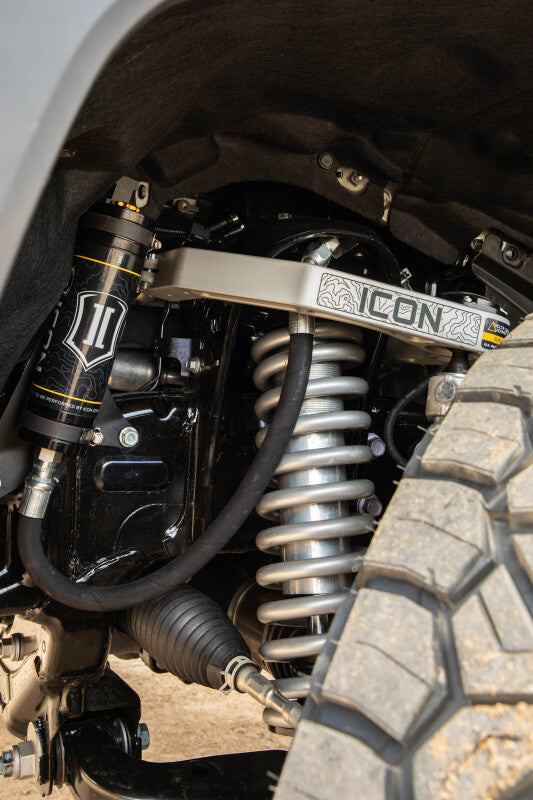

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

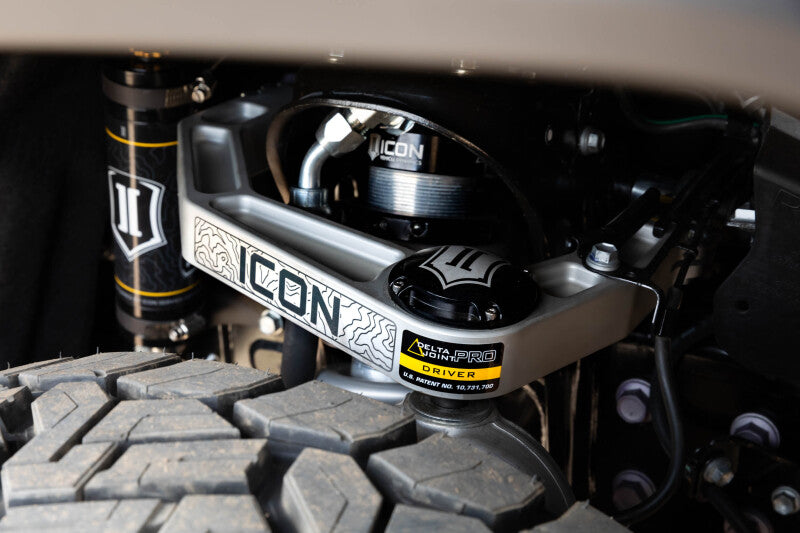

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Enhance your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 4 suspension system, engineered for serious drivers seeking exceptional off-road and on-road performance. This comprehensive kit features vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs, offering superior damping and heat dissipation to prevent damper fade during demanding driving conditions. The coilovers are height adjustable from 1.25 to 3 inches, allowing for larger, more aggressive wheel and tire setups while maintaining optimal ride quality and vehicle control. The remote reservoirs increase shock oil volume, which improves cooling and damper consistency over extended use. This system includes front differential drop brackets designed to maximize wheel travel and prevent CV joint bind, ensuring smooth operation across rough terrain. The polyurethane differential bushings replace OE soft rubber, reducing differential movement under load for enhanced stability. Crafted from 6061 aircraft-grade CNC-machined aluminum, the components are both lightweight and durable, with corrosion-resistant cad plating for longevity. ICON’s billet aluminum upper control arms with the patented Delta Joint Pro provide 90 degrees of articulation, improving wheel travel and steering responsiveness. FK rod end bearings further extend component lifespan and minimize deflection. The system's combination of coilover shocks, differential drop, and upgraded control arms results in increased wheel travel, improved ride quality, and enhanced vehicle control both on- and off-road. Tailored specifically for 4WD models, this suspension kit offers a significant upgrade over stock, providing the durability and performance necessary for serious off-road adventures while maintaining daily drivability.

Features:

• 2.5 Series remote reservoir rear shocks with 7/8 inch shafts for improved performance and balanced tuning

• Front differential drop brackets to enhance CV joint angles and maximize wheel travel on 4WD models

• Adjustable coilovers offering 1.25 to 3 inches of front lift for larger tires and aggressive styling

• Billet aluminum upper control arms with Delta Joint Pro for 90 degrees of articulation and durability

• Corrosion-resistant CAD plated coilover shock bodies with FK rod end bearings for longevity

• High-strength ICON engineered coil springs for optimal ride and load handling

• 6061 aircraft-grade aluminum CNC machined components for lightweight strength

• Designed specifically for 2024-2025 Toyota Tacoma 4WD models, with compatibility notes for 2WD variants

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
