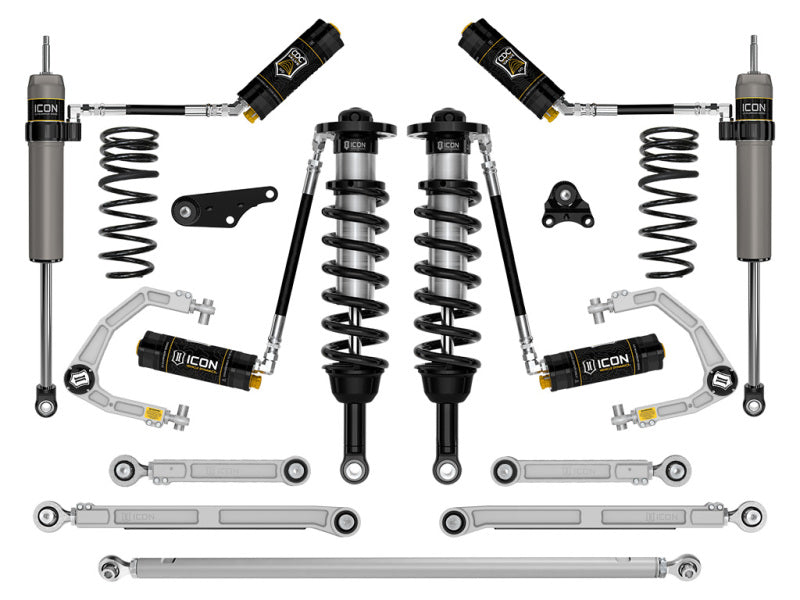

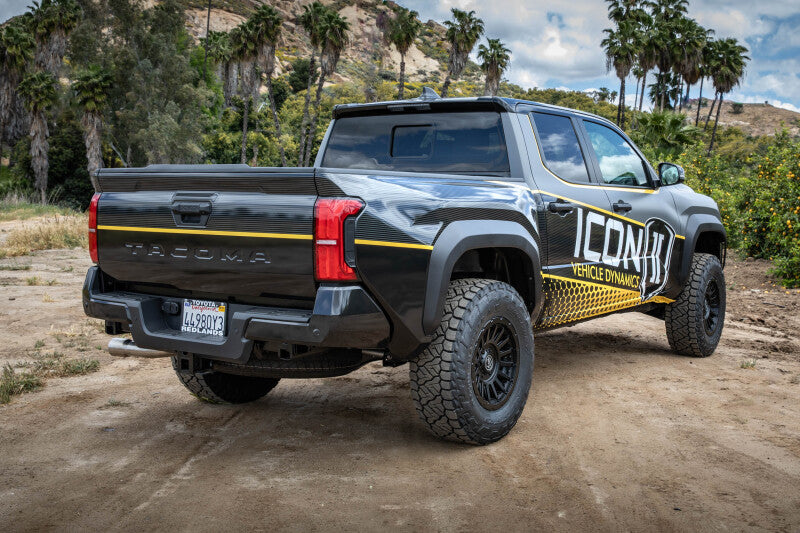

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 11 Suspension System Billet

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear upper and lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

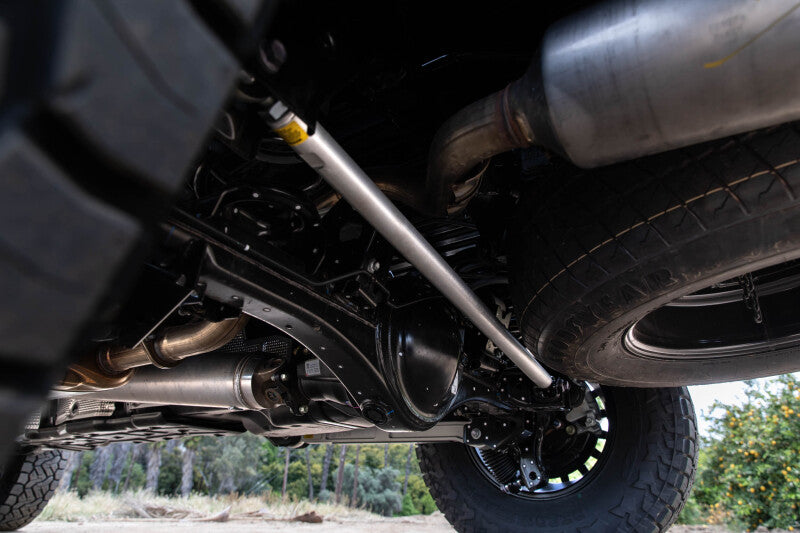

• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

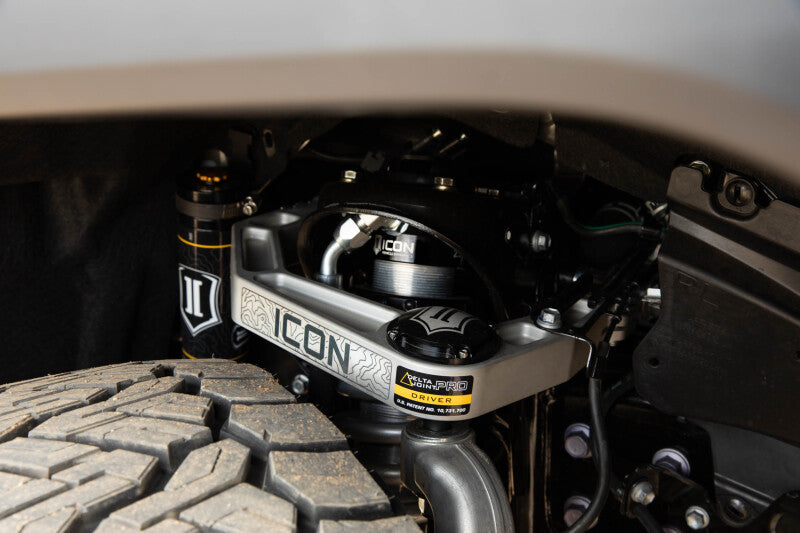

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

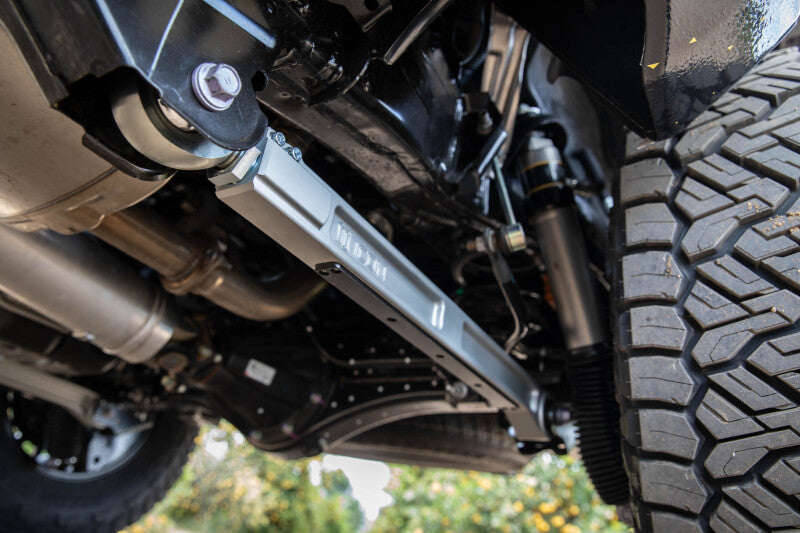

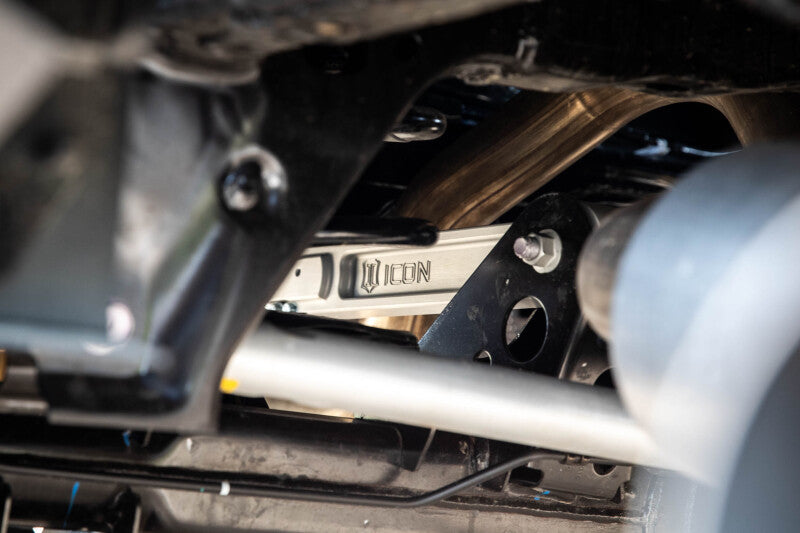

• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Enhance your 2024-2025 Toyota Tacoma's performance and off-road capability with the ICON Stage 11 suspension system, designed specifically for 4WD models. This comprehensive kit features ICON's billet aluminum upper control arms, which improve front-end geometry, increase on-vehicle camber and caster adjustments, and provide increased durability. The included Delta Joint PRO ball joints offer full bump and droop travel, eliminating bind and ensuring smooth suspension articulation. The front differential drop kit maximizes wheel travel and reduces CV joint stress, contributing to better overall handling and stability. The 2.5 Aluminum Series remote reservoir coilovers with integrated rebound zones deliver superior damping, improved shock cooling, and an adjustable lift height from 1.25 to 3 inches, providing a customizable ride height tailored to your driving needs. The triple-rate coil springs enhance ride quality, offer a slight rear lift, and resist bottoming out during aggressive off-road pursuits. ICON's billet rear upper and lower links feature dual-durometer greaseless bushings and FK rod ends, optimizing rear articulation while reducing road noise and vibrations. The adjustable rear track bar centers the axle and allows on-vehicle fine-tuning without disassembly, simplifying suspension adjustments. All shocks are equipped with CDC valves, offering 10 levels of compression damping adjustment from soft to hard, which translates into precise control on and off-road. Constructed from 6061 aircraft-grade aluminum, all components are corrosion resistant and built for long-term durability. This system is engineered to improve wheel travel, ride comfort, and handling, making it an excellent upgrade for serious drivers seeking a balanced on-road and off-road experience. Please note, this kit is tailored for 4WD models, with specific provisions for vehicle alignment and performance enhancements, ensuring your Tacoma remains capable and reliable in demanding conditions.

Features:

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8 inch shafts for enhanced performance and balanced tuning

• Front differential drop kit improves maximum CV joint angles and maximizes wheel travel on 4WD models

• On-vehicle adjustable billet aluminum rear track bar properly centers the rear axle for better suspension performance

• Front coilovers with remote reservoirs providing superior damping, improved cooling, and adjustable lift from 1.25 to 3 inches

• Billet aluminum upper control arms with camber and caster adjustment for improved drivability and durability

• Shock absorbers equipped with CDC valves offering 10 compression damping settings, from soft to hard

• Billet rear upper and lower links enhancing rear articulation and enabling pinion angle adjustment

• Delta Joint PRO ball joints with 90 degrees of articulation, ensuring smooth suspension movement

• Triple rate rear coil springs providing improved ride quality and approximately 0.5 inch rear lift

• Corrosion-resistant CAD plated coilover shock bodies with 7/8 inch shafts for durability

• FK rod end bearings for extended longevity and minimal deflection

• Adjustable coilovers allowing for up to 3 inches of front lift over stock

• Enhanced wheel travel and ride quality over stock suspension

• Constructed from 6061 aircraft-grade aluminum for strength and lightweight performance

• Designed for maximum control and off-road capability while maintaining on-road comfort

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
