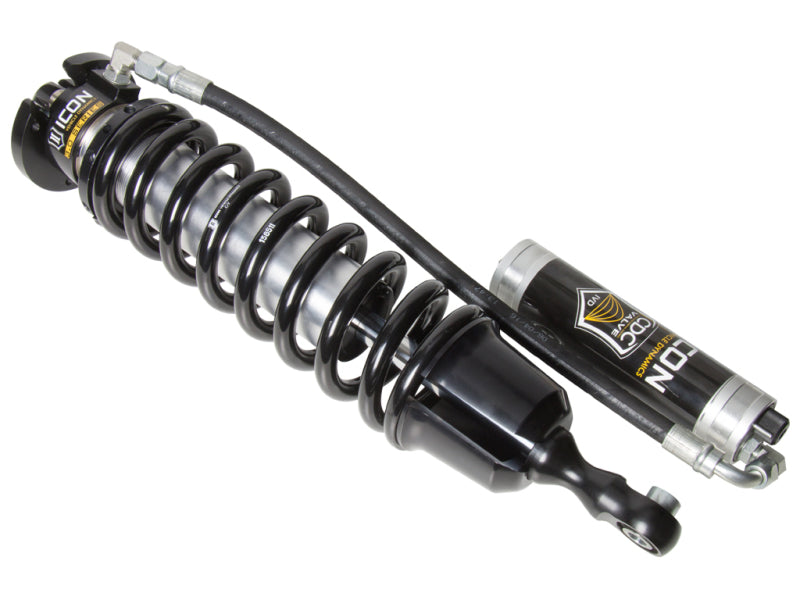

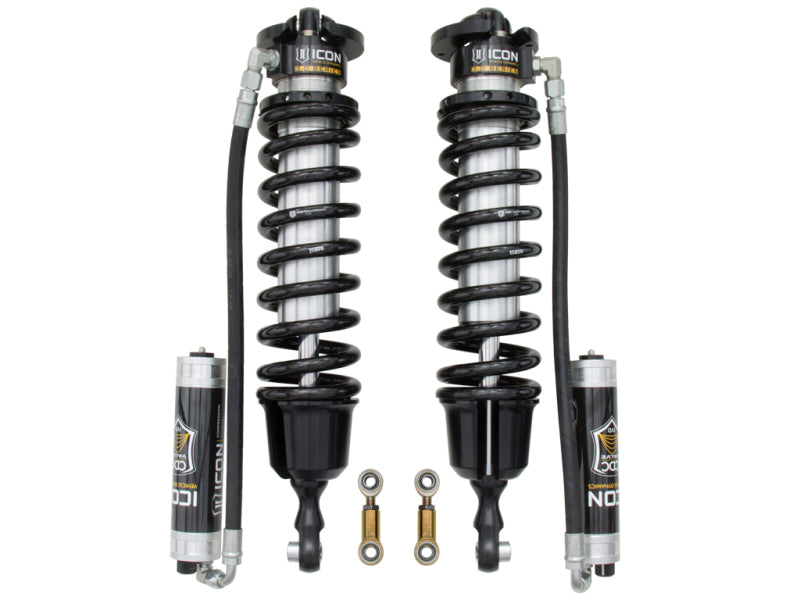

ICON 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit

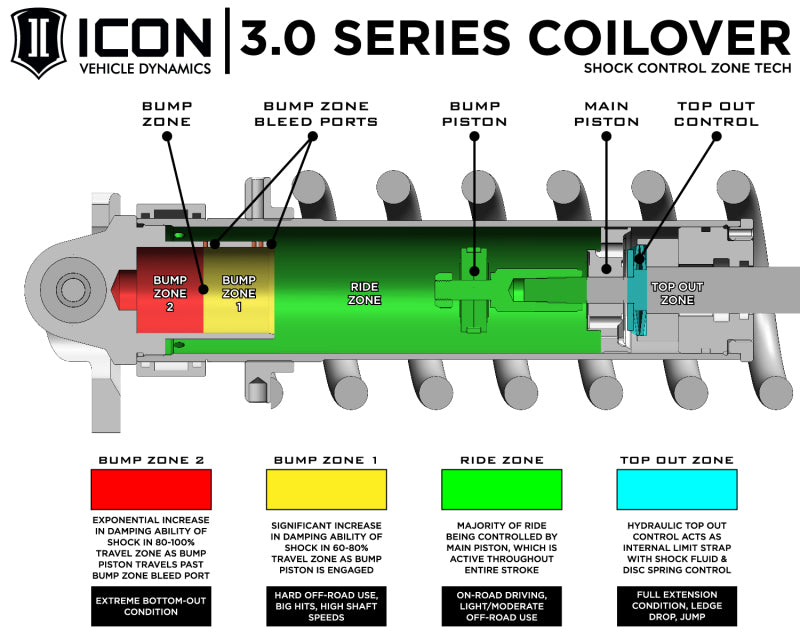

Compared to the 2.5a*? diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the a**Bump Zonea*?. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
These ICON coilovers feature 3.0 Series shocks and coil springs optimized for this application. The shocka**s larger 3.0a*? body and increased piston area improves damping ability and ride quality across varying types of terrain.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

Fitment:
Toyota Sequoia Limited 2008
Toyota Sequoia Limited 2009
Toyota Sequoia Limited 2010
Toyota Sequoia Limited 2011
Toyota Sequoia Limited 2012
Toyota Sequoia Limited 2013
Toyota Sequoia Limited 2014
Toyota Sequoia Limited 2015
Toyota Sequoia Limited 2016
Toyota Sequoia Limited 2017
Toyota Sequoia Limited 2018
Toyota Sequoia Limited 2019
Toyota Sequoia Limited 2020
Toyota Sequoia Limited 2021
Toyota Sequoia Limited 2022
Toyota Sequoia Nightshade 2021
Toyota Sequoia Nightshade 2022
Toyota Sequoia Platinum 2008
Toyota Sequoia Platinum 2009
Toyota Sequoia Platinum 2010
Toyota Sequoia Platinum 2011
Toyota Sequoia Platinum 2012
Toyota Sequoia Platinum 2013
Toyota Sequoia Platinum 2014
Toyota Sequoia Platinum 2015
Toyota Sequoia Platinum 2016
Toyota Sequoia Platinum 2017
Toyota Sequoia Platinum 2018
Toyota Sequoia Platinum 2019
Toyota Sequoia Platinum 2020
Toyota Sequoia Platinum 2021
Toyota Sequoia Platinum 2022
Toyota Sequoia SR5 2008
Toyota Sequoia SR5 2009
Toyota Sequoia SR5 2010
Toyota Sequoia SR5 2011
Toyota Sequoia SR5 2012
Toyota Sequoia SR5 2013
Toyota Sequoia SR5 2014
Toyota Sequoia SR5 2015
Toyota Sequoia SR5 2016
Toyota Sequoia SR5 2017
Toyota Sequoia SR5 2018
Toyota Sequoia SR5 2019
Toyota Sequoia SR5 2020
Toyota Sequoia SR5 2021
Toyota Sequoia SR5 2022
Toyota Sequoia TRD Pro 2020
Toyota Sequoia TRD Pro 2021
Toyota Sequoia TRD Pro 2022
Toyota Sequoia TRD Sport 2018
Toyota Sequoia TRD Sport 2019
Toyota Sequoia TRD Sport 2020
Toyota Sequoia TRD Sport 2021
Toyota Sequoia TRD Sport 2022
Toyota Tundra 1794 Edition 2014
Toyota Tundra 1794 Edition 2015
Toyota Tundra 1794 Edition 2016
Toyota Tundra 1794 Edition 2017
Toyota Tundra 1794 Edition 2018
Toyota Tundra 1794 Edition 2019
Toyota Tundra 1794 Edition 2020
Toyota Tundra 1794 Edition 2021
Toyota Tundra Base 2007
Toyota Tundra Base 2008
Toyota Tundra Base 2009
Toyota Tundra Base 2010
Toyota Tundra Base 2011
Toyota Tundra Base 2012
Toyota Tundra Base 2013
Toyota Tundra Limited 2007
Toyota Tundra Limited 2008
Toyota Tundra Limited 2009
Toyota Tundra Limited 2010
Toyota Tundra Limited 2011
Toyota Tundra Limited 2012
Toyota Tundra Limited 2013
Toyota Tundra Limited 2014
Toyota Tundra Limited 2015
Toyota Tundra Limited 2016
Toyota Tundra Limited 2017
Toyota Tundra Limited 2018
Toyota Tundra Limited 2019
Toyota Tundra Limited 2020
Toyota Tundra Limited 2021
Toyota Tundra Nightshade 2021
Toyota Tundra Platinum 2010
Toyota Tundra Platinum 2011
Toyota Tundra Platinum 2012
Toyota Tundra Platinum 2013
Toyota Tundra Platinum 2014
Toyota Tundra Platinum 2015
Toyota Tundra Platinum 2016
Toyota Tundra Platinum 2017
Toyota Tundra Platinum 2018
Toyota Tundra Platinum 2019
Toyota Tundra Platinum 2020
Toyota Tundra Platinum 2021
Toyota Tundra SR 2014
Toyota Tundra SR 2015
Toyota Tundra SR 2016
Toyota Tundra SR 2017
Toyota Tundra SR 2018
Toyota Tundra SR 2019
Toyota Tundra SR 2020
Toyota Tundra SR 2021
Toyota Tundra SR5 2007
Toyota Tundra SR5 2008
Toyota Tundra SR5 2009
Toyota Tundra SR5 2010
Toyota Tundra SR5 2011
Toyota Tundra SR5 2014
Toyota Tundra SR5 2015
Toyota Tundra SR5 2016
Toyota Tundra SR5 2017
Toyota Tundra SR5 2018
Toyota Tundra SR5 2019
Toyota Tundra SR5 2020
Toyota Tundra SR5 2021
Toyota Tundra Trail 2021
Toyota Tundra TRD Pro 2015
Toyota Tundra TRD Pro 2016
Toyota Tundra TRD Pro 2017
Toyota Tundra TRD Pro 2019
Toyota Tundra TRD Pro 2020
Toyota Tundra TRD Pro 2021
