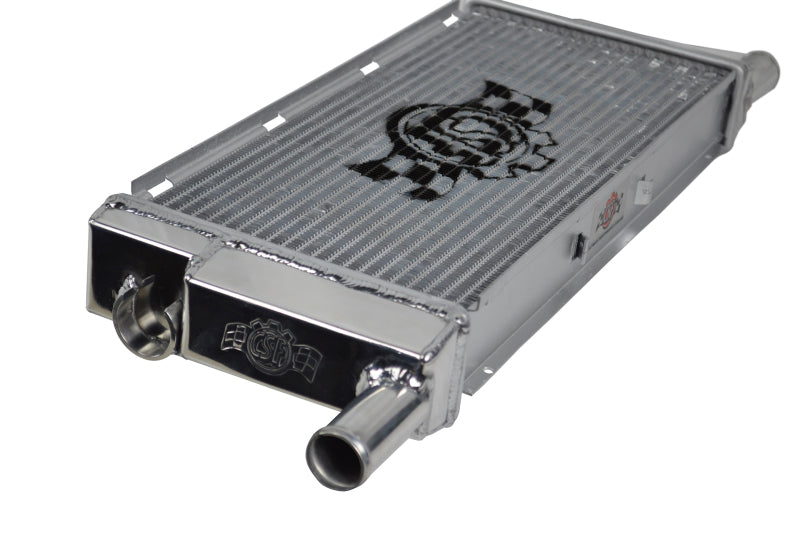

CSF Porsche Cayman/Boxster/Carrera (991/981) Auxiliary Center Radiator

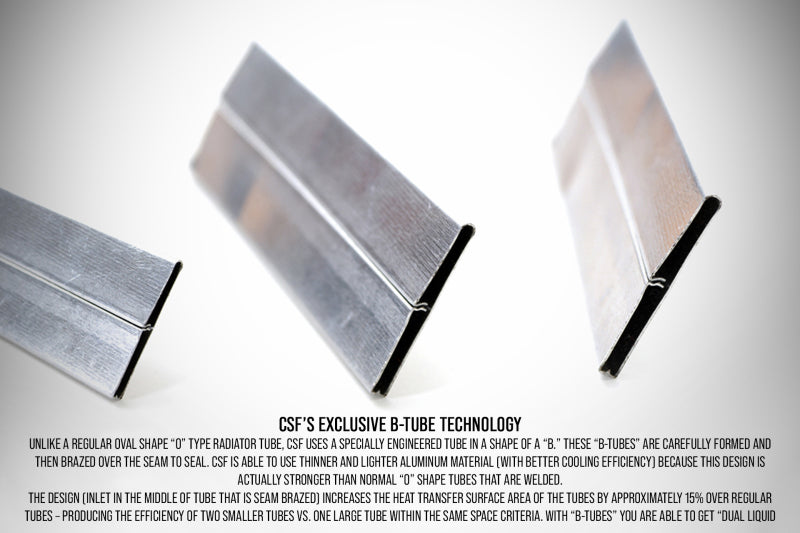

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 981 Cayman/Boxster running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

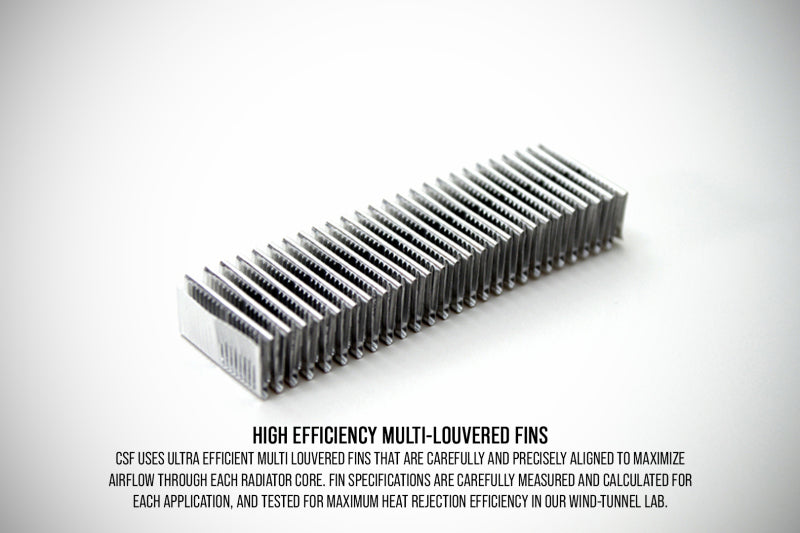

CSF manufactures the most advanced and efficient radiator in the industry for your 981 Cayman/Boxster. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7060 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Fitment:
Porsche 718 Boxster Base 2017
Porsche 718 Boxster Base 2018
Porsche 718 Boxster Base 2019
Porsche 718 Boxster Base 2020
Porsche 718 Boxster Base 2021
Porsche 718 Boxster Base 2022
Porsche 718 Boxster GTS 2018
Porsche 718 Boxster GTS 2019
Porsche 718 Boxster S 2017
Porsche 718 Boxster S 2018
Porsche 718 Boxster S 2019
Porsche 718 Boxster S 2020
Porsche 718 Boxster S 2021
Porsche 718 Boxster S 2022
Porsche 718 Boxster T 2020
Porsche 718 Boxster T 2021
Porsche 718 Boxster T 2022
Porsche 718 Cayman Base 2017
Porsche 718 Cayman Base 2018
Porsche 718 Cayman Base 2019
Porsche 718 Cayman Base 2020
Porsche 718 Cayman Base 2021
Porsche 718 Cayman Base 2022
Porsche 718 Cayman GTS 2018
Porsche 718 Cayman GTS 2019
Porsche 718 Cayman S 2017
Porsche 718 Cayman S 2018
Porsche 718 Cayman S 2019
Porsche 718 Cayman S 2020
Porsche 718 Cayman S 2021
Porsche 718 Cayman S 2022
Porsche 718 Cayman T 2020
Porsche 718 Cayman T 2021
Porsche 718 Cayman T 2022
Porsche 911 Carrera 2012
Porsche 911 Carrera 2013
Porsche 911 Carrera 2014
Porsche 911 Carrera 2015
Porsche 911 Carrera 2016
Porsche 911 Carrera 2017
Porsche 911 Carrera 2018
Porsche 911 Carrera 2019
Porsche 911 Carrera 4 2013
Porsche 911 Carrera 4 2014
Porsche 911 Carrera 4 2015
Porsche 911 Carrera 4 2016
Porsche 911 Carrera 4 2017
Porsche 911 Carrera 4 2018
Porsche 911 Carrera 4 2019
Porsche 911 Carrera 4 GTS 2015
Porsche 911 Carrera 4 GTS 2016
Porsche 911 Carrera 4 GTS 2018
Porsche 911 Carrera 4 GTS 2019
Porsche 911 Carrera 4S 2013
Porsche 911 Carrera 4S 2014
Porsche 911 Carrera 4S 2015
Porsche 911 Carrera 4S 2016
Porsche 911 Carrera 4S 2017
Porsche 911 Carrera 4S 2018
Porsche 911 Carrera 4S 2019
Porsche 911 Carrera GTS 2015
Porsche 911 Carrera GTS 2016
Porsche 911 Carrera GTS 2018
Porsche 911 Carrera GTS 2019
Porsche 911 Carrera S 2012
Porsche 911 Carrera S 2013
Porsche 911 Carrera S 2014
Porsche 911 Carrera S 2015
Porsche 911 Carrera S 2016
Porsche 911 Carrera S 2017
Porsche 911 Carrera S 2018
Porsche 911 Carrera S 2019
Porsche 911 Carrera T 2018
Porsche 911 Carrera T 2019
Porsche 911 Targa 4 2014
Porsche 911 Targa 4 2015
Porsche 911 Targa 4 2016
Porsche 911 Targa 4 2017
Porsche 911 Targa 4 2018
Porsche 911 Targa 4 2019
Porsche 911 Targa 4 GTS 2016
Porsche 911 Targa 4 GTS 2018
Porsche 911 Targa 4 GTS 2019
Porsche 911 Targa 4S 2014
Porsche 911 Targa 4S 2015
Porsche 911 Targa 4S 2016
Porsche 911 Targa 4S 2017
Porsche 911 Targa 4S 2018
Porsche 911 Targa 4S 2019
Porsche Boxster Base 2012
Porsche Boxster Base 2013
Porsche Boxster Base 2014
Porsche Boxster Base 2015
Porsche Boxster Base 2016
Porsche Boxster Black Edition 2016
Porsche Boxster GTS 2015
Porsche Boxster GTS 2016
Porsche Boxster S 2012
Porsche Boxster S 2013
Porsche Boxster S 2014
Porsche Boxster S 2015
Porsche Boxster S 2016
Porsche Boxster S Black Edition 2012
Porsche Boxster Spyder 2012
Porsche Cayman Base 2014
Porsche Cayman Base 2015
Porsche Cayman Base 2016
Porsche Cayman Black Edition 2016
Porsche Cayman GTS 2015
Porsche Cayman GTS 2016
Porsche Cayman S 2014
Porsche Cayman S 2015
Porsche Cayman S 2016
