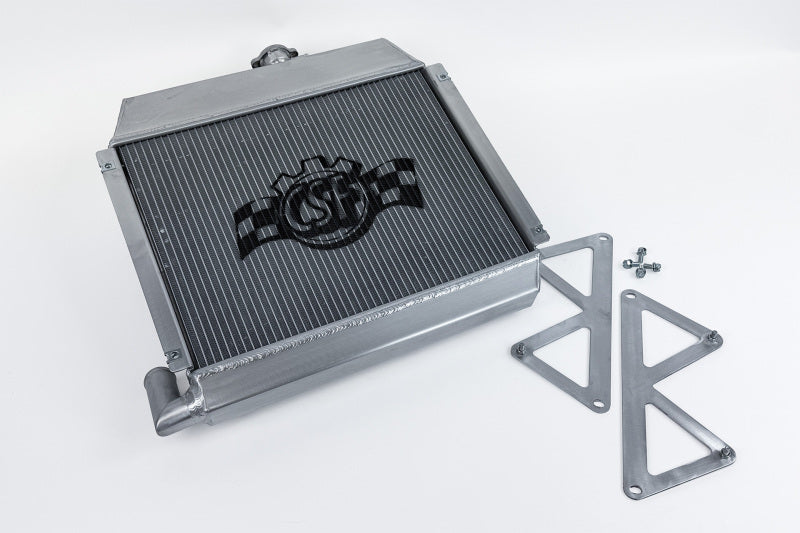

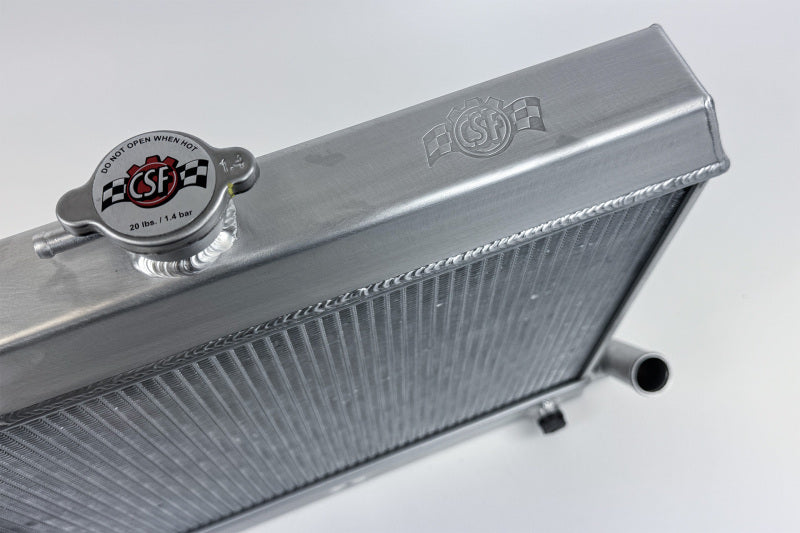

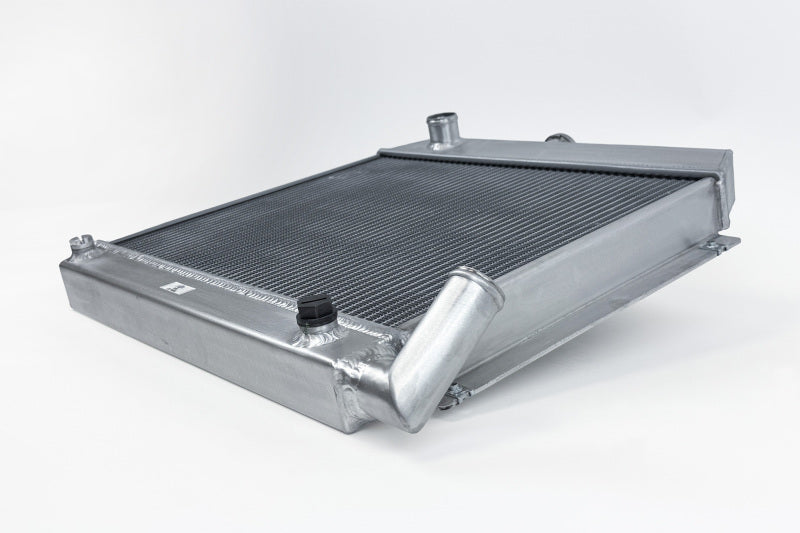

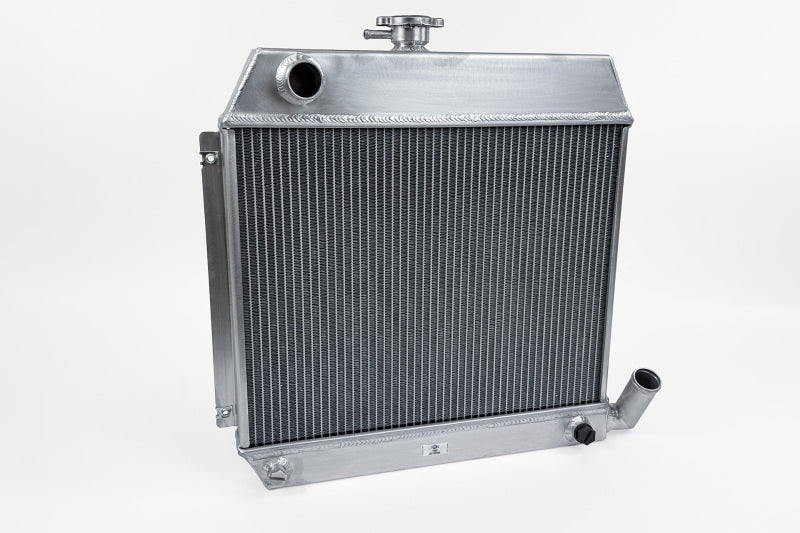

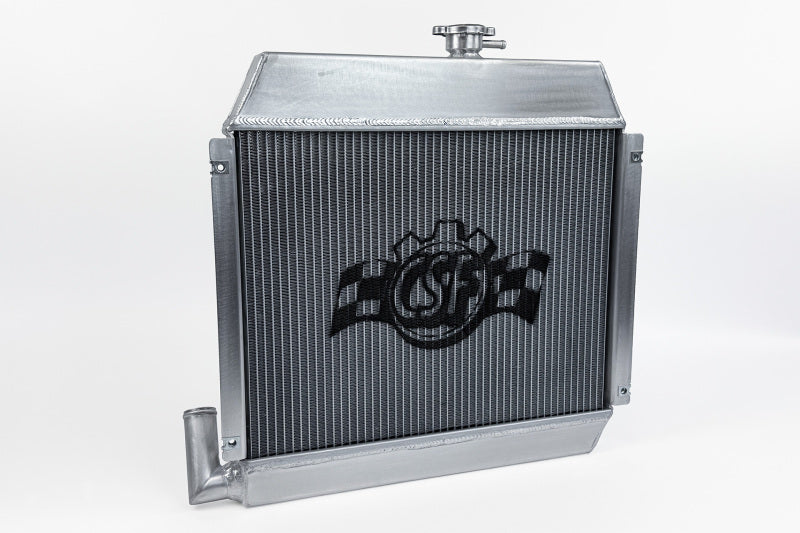

CSF BMW E10 2002 High Performance All Aluminum Radiator

The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF went through several different prototypes using cores of varying thicknesses. The 31mm core was found to be the best balance of performance and fitment. This sizing allows for use of an OE style clutch pull fan or an aftermarket electric push fan. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes, the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting. CSF manufactures the most advanced and efficient radiator in the industry for your BMW 2002. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7225 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

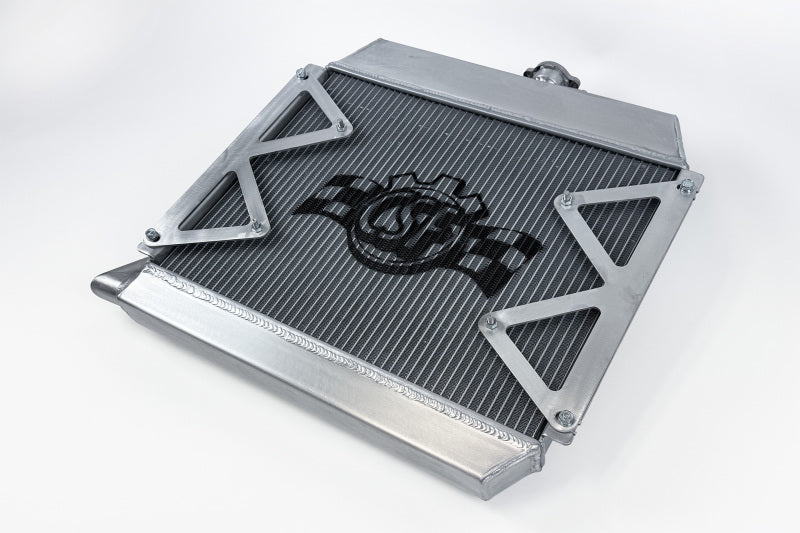

• Includes optional / removable mounting brackets to run aftermarket 11" SPAL fan #30100365
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Compatible with vehicles equipped with and without Air Conditioning
• Requires use of lower radiator coolant hose BMW: 11 53 1 250 702
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• M14X1.5P Temperature Switch Sensor Port & Plug
• 100% All Aluminum TIG-Welded Construction
• 1-Row - 31mm Ultra-High-Performance Core
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Satin Finish

The CSF #7225 radiator is engineered for optimal cooling performance in classic BMW models including the 1602 and 2002 series from 1967 to 1974. This radiator features a 1-Row 31mm aluminum core that enhances fluid capacity and significantly improves heat dissipation. Extensive prototyping determined that this core thickness offers the best balance of performance and fitment, allowing compatibility with OEM style clutch pull fans or aftermarket electric push fans.
CSF’s exclusive B-Tube Technology boosts heat transfer efficiency by approximately 15%, while the increased number of cooling fins and tubes ensures superior airflow and cooling capacity. The multi-louvered fins maximize surface contact, further elevating the radiator’s thermal performance. Crafted from 100% TIG-welded aluminum with a satin finish, this radiator delivers durability and a sleek appearance.
Designed as a drop-in replacement, the radiator mounts in the factory location without modifications, simplifying installation. It includes CNC-machined mounting brackets and OEM-style inlet and outlet connections, ensuring a precise fit and reliable operation. The radiator is individually leak and pressure tested, offering peace of mind and consistent performance. Compatibility extends to vehicles equipped with or without air conditioning, and it requires the lower radiator hose part number 11 53 1 250 702 for proper installation. For added versatility, optional removable brackets allow installation of aftermarket fans such as the 11” SPAL #30100365.
Backed by a 2-year limited warranty, the CSF BMW E10 2002 Radiator is a high-performance upgrade that maximizes cooling efficiency for vintage BMW enthusiasts seeking durability and easy installation. Whether for restoration or daily driving, this aluminum radiator offers a significant upgrade over OEM units, ensuring your classic BMW stays cool under demanding conditions.

Features:

• 1-Row 31mm aluminum core optimizes fluid capacity and heat dissipation

• Exclusive B-Tube Technology increases heat transfer by approximately 15%

• Multi-louvered fins maximize airflow and surface contact

• Drop-in fit with no modifications required for OEM installation

• Includes CNC-machined mounting brackets and OEM-style inlet/outlet ports

• Compatible with vehicles equipped with or without air conditioning

• Requires lower radiator hose part number 11 53 1 250 702

• 100% TIG-welded aluminum construction ensures durability

• Individually leak and pressure tested for reliability

• Optional removable brackets for aftermarket fan installation

• Satin finish provides a professional appearance

• Backed by a 2-year limited warranty

Fitment:
BMW 1602 Base 1967
BMW 1602 Base 1968
BMW 1602 Base 1969
BMW 1602 Base 1970
BMW 1602 Base 1971
BMW 2002 Base 1966
BMW 2002 Base 1967
BMW 2002 Base 1968
BMW 2002 Base 1969
BMW 2002 Base 1970
BMW 2002 Base 1971
BMW 2002 Base 1972
BMW 2002 Base 1973
BMW 2002 Base 1974
BMW 2002 Base 1975
BMW 2002 Base 1976
BMW 2002 Cabriolet 1971
BMW 2002 Cabriolet 1972
BMW 2002 Cabriolet 1973
BMW 2002 Cabriolet 1974
BMW 2002 Turbo 1973
BMW 2002 Turbo 1974
BMW 2002tii Base 1971
BMW 2002tii Base 1972
BMW 2002tii Base 1973
BMW 2002tii Base 1974
