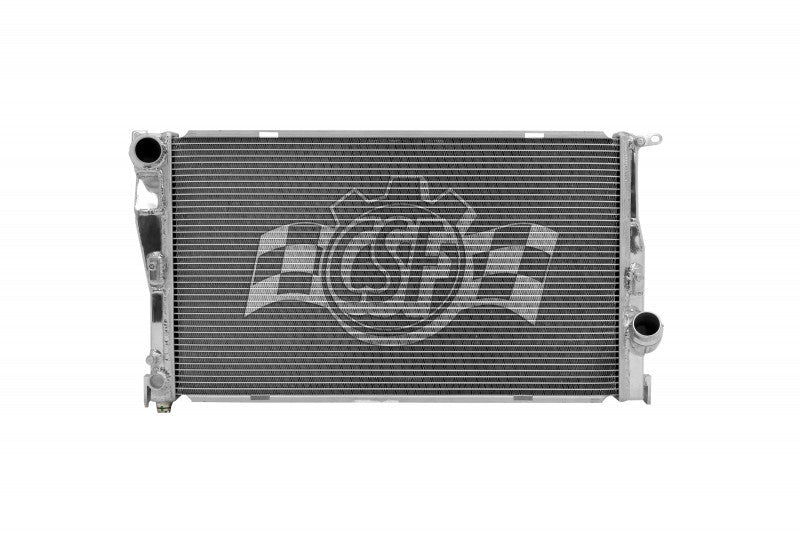

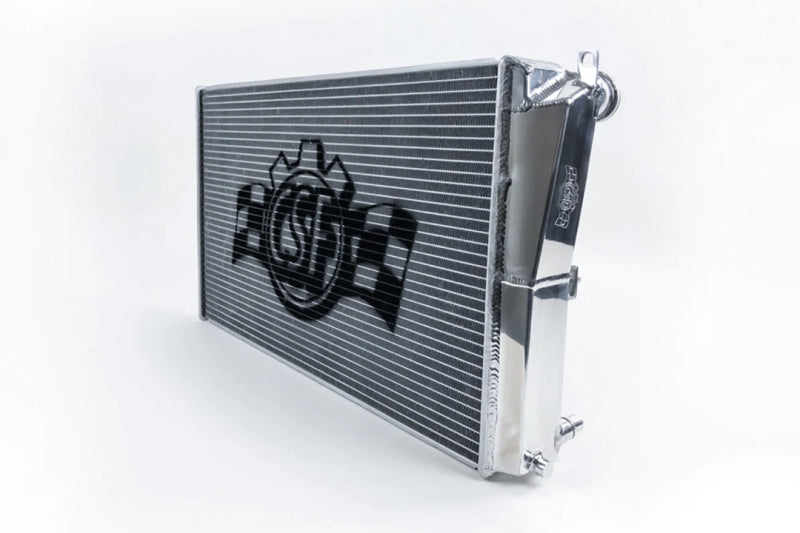

CSF BMW 2 Seires (F22/F23) / BMW 3 Series (F30/F31/F34) / BMW 4 Series (F32/F33/F36) A/T Radiator

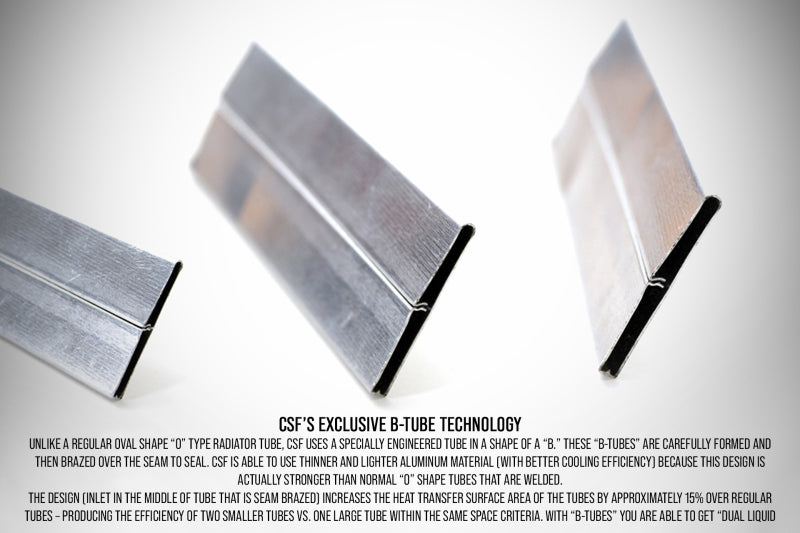

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your F2X/F3X running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

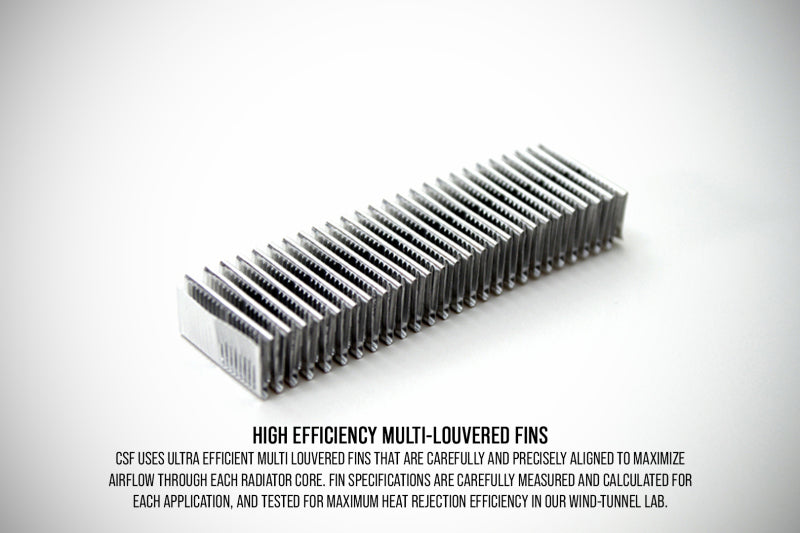

CSF manufactures the most advanced and efficient radiator in the industry for your F2X/F3X. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7081 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Fitment:
BMW 228i Base 2014
BMW 228i Base 2015
BMW 228i Base 2016
BMW 228i xDrive Base 2015
BMW 228i xDrive Base 2016
BMW 320i Base 2013
BMW 320i Base 2014
BMW 320i Base 2015
BMW 320i Base 2016
BMW 320i Base 2017
BMW 320i Base 2018
BMW 320i xDrive Base 2013
BMW 320i xDrive Base 2014
BMW 320i xDrive Base 2015
BMW 320i xDrive Base 2016
BMW 320i xDrive Base 2017
BMW 320i xDrive Base 2018
BMW 328i Base 2011
BMW 328i Base 2012
BMW 328i Base 2013
BMW 328i Base 2014
BMW 328i Base 2015
BMW 328i Base 2016
BMW 328i xDrive Base 2011
BMW 328i xDrive Base 2012
BMW 328i xDrive Base 2013
BMW 328i xDrive Base 2014
BMW 328i xDrive Base 2015
BMW 328i xDrive Base 2016
BMW 335i Base 2011
BMW 335i Base 2012
BMW 335i Base 2013
BMW 335i Base 2014
BMW 335i Base 2015
BMW 335i GT xDrive Base 2014
BMW 335i GT xDrive Base 2015
BMW 335i GT xDrive Base 2016
BMW 335i xDrive Base 2011
BMW 335i xDrive Base 2012
BMW 335i xDrive Base 2013
BMW 335i xDrive Base 2014
BMW 335i xDrive Base 2015
BMW 428i Base 2014
BMW 428i Base 2015
BMW 428i Base 2016
BMW 428i Gran Coupe Base 2015
BMW 428i Gran Coupe Base 2016
BMW 428i xDrive Base 2014
BMW 428i xDrive Base 2015
BMW 428i xDrive Base 2016
BMW 428i xDrive Gran Coupe Base 2015
BMW 428i xDrive Gran Coupe Base 2016
BMW 435i Base 2014
BMW 435i Base 2015
BMW 435i Base 2016
BMW 435i Gran Coupe Base 2015
BMW 435i Gran Coupe Base 2016
BMW 435i xDrive Base 2014
BMW 435i xDrive Base 2015
BMW 435i xDrive Base 2016
BMW 435i xDrive Gran Coupe Base 2015
BMW 435i xDrive Gran Coupe Base 2016
BMW i3 Base 2014
BMW i3 Base 2015
BMW i3 Base 2016
BMW i3 Base 2017
BMW i3 Range Extender 2014
BMW i3 Range Extender 2015
BMW i3 Range Extender 2016
BMW i3 Range Extender 2017
BMW M235i Base 2014
BMW M235i Base 2015
BMW M235i Base 2016
BMW M235i xDrive Base 2015
BMW M235i xDrive Base 2016
