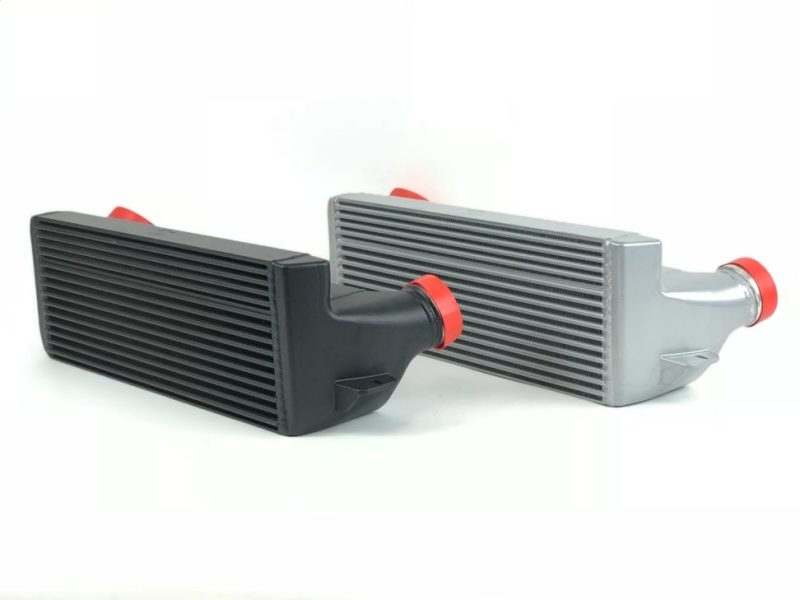

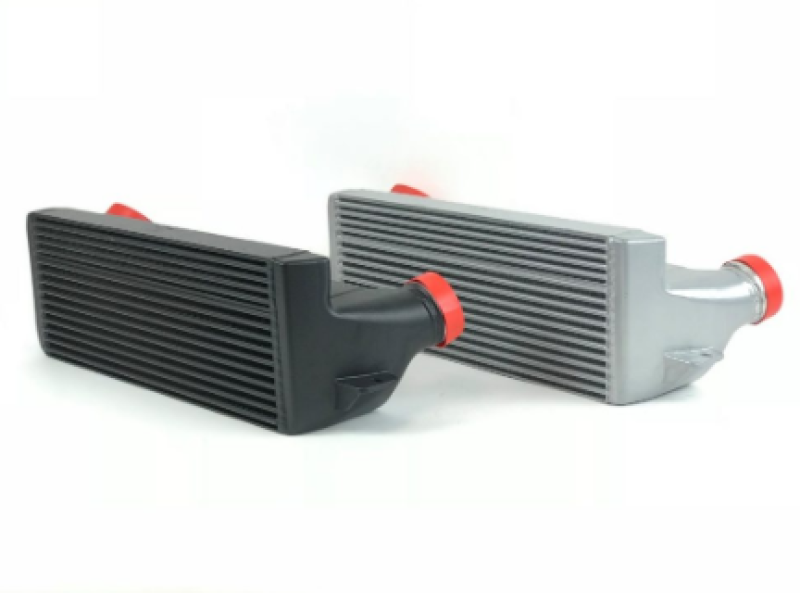

CSF 04-13 BMW 335i/xi (E90/E91/E92/E93) High Performance Stepped Core Bar/Plate Intercooler - Silver

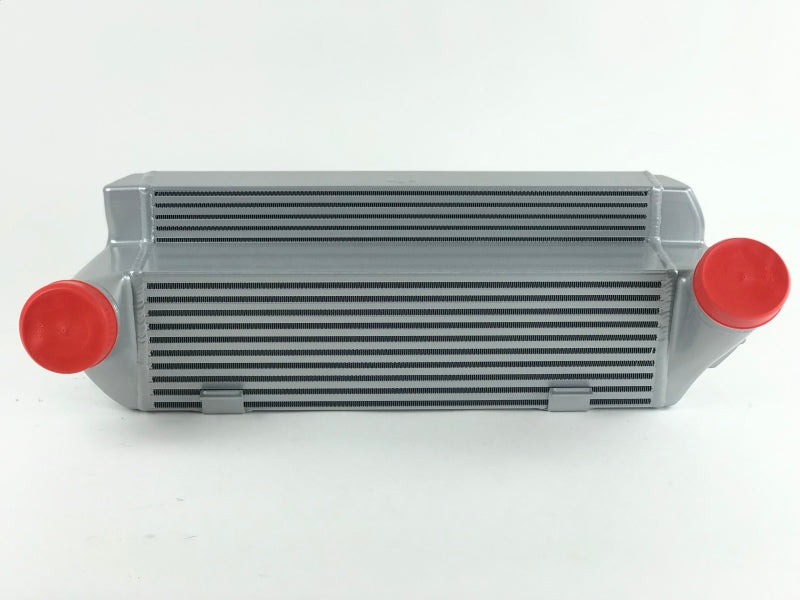

The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT's in check on a completely unmodified / stock vehicle, but once users to start increase power through bolt-on modifications, tuning, and built engines, the OEM intercooler will become the Achilles Heel of the system with IAT's skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle. Enter CSF with their stepped core design, bar/plate high performance N54 intercooler. This "drop-in fit" intercooler, which requires no modifications to install, has a bottom / larger section that is 5.5in thick (140mm) with a front face that is massive 8.25in tall (210mm). Made from CSF's industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface, and rather than scattering like it does with hitting the face of a flat bar that all competing products have, it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars). A huge improvement over the OEM unit, and enough to handle even the most advanced N54 engine builds. Good for 1000hp no problem!

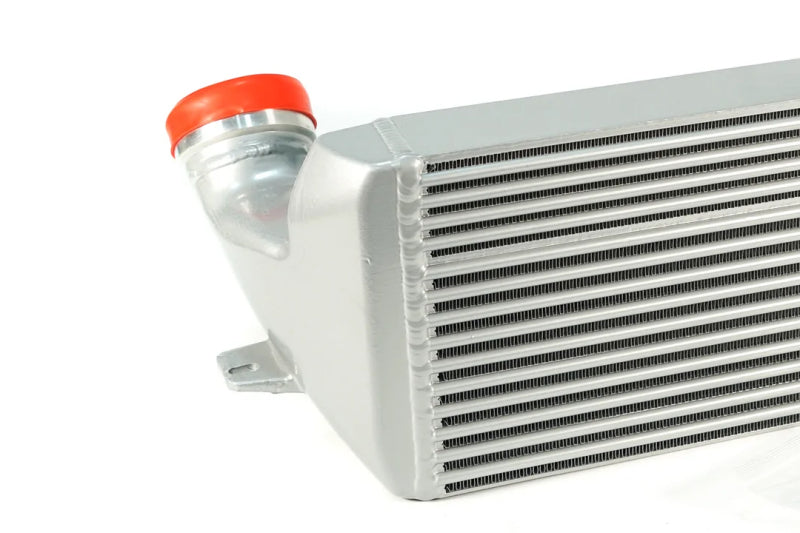

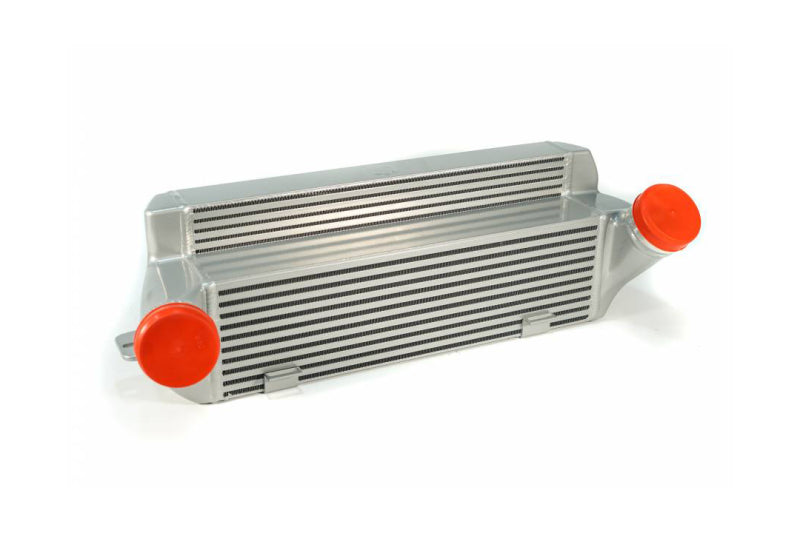

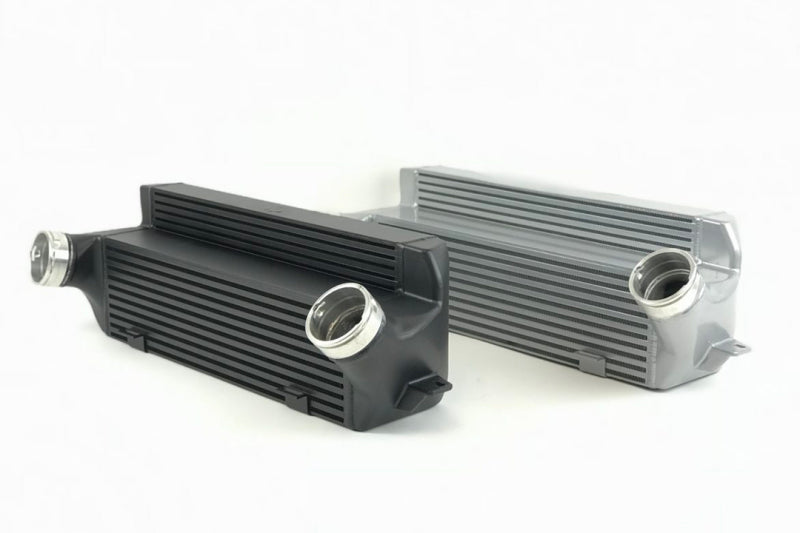

The CSF N54 Intercooler's Stepped Core Design maximizes surface area contact and internal intake air-flow volume. The Rounded Front Face Bar/Plate Design optimizes airflow through the core and is a true "Drop-in Fit" Plug-and-Play Design.

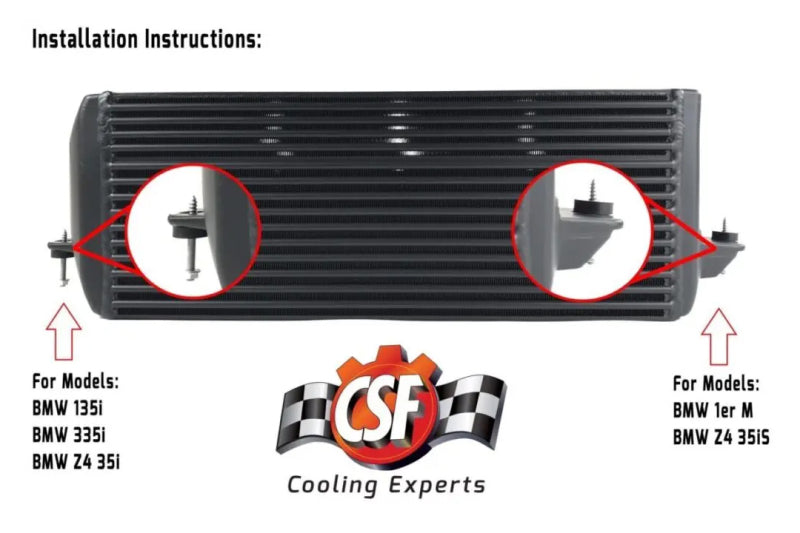

The CSF #8127 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Fitment:
BMW 135i Base 2008
BMW 135i Base 2009
BMW 135i Base 2010
BMW 135i Base 2011
BMW 135i Base 2012
BMW 135i Base 2013
BMW 135is Base 2013
BMW 335i Base 2007
BMW 335i Base 2008
BMW 335i Base 2009
BMW 335i Base 2010
BMW 335i Base 2011
BMW 335i Base 2012
BMW 335i Base 2013
BMW 335i xDrive Base 2009
BMW 335i xDrive Base 2010
BMW 335i xDrive Base 2011
BMW 335i xDrive Base 2012
BMW 335i xDrive Base 2013
BMW 335is Base 2011
BMW 335is Base 2012
BMW 335is Base 2013
BMW 335xi Base 2007
BMW 335xi Base 2008
BMW X1 xDrive35i 2013
BMW X1 xDrive35i 2014
BMW X1 xDrive35i 2015
BMW Z4 sDrive35i 2009
BMW Z4 sDrive35i 2010
BMW Z4 sDrive35i 2011
BMW Z4 sDrive35i 2012
BMW Z4 sDrive35i 2013
BMW Z4 sDrive35i 2014
BMW Z4 sDrive35i 2015
BMW Z4 sDrive35i 2016
BMW Z4 sDrive35is 2011
BMW Z4 sDrive35is 2012
BMW Z4 sDrive35is 2013
BMW Z4 sDrive35is 2014
BMW Z4 sDrive35is 2015
BMW Z4 sDrive35is 2016
