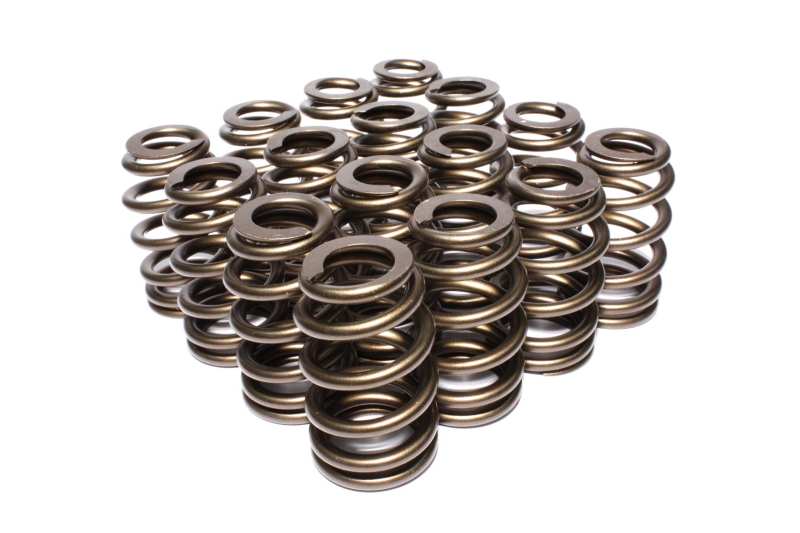

COMP Cams Valve Springs 1.185in Beehive
$459.99
COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims
26056
Top Bottom
1.1851.454
.7311.000
160 @ 1.800
420 @ 1.150
1.100
400
785
703, 705
4696, 4697, 4704
4757
Beehive Valve Springs: Top 1.185" OD, .731" ID
The COMP Cams Beehive Valve Springs Part #CCA26056-16 are engineered to provide superior valve train stability while significantly reducing weight, resulting in improved engine responsiveness and durability. These springs feature a unique beehive shape that effectively manages valve train stress, minimizes damaging harmonics, and allows the engine to operate efficiently at higher RPMs. With a lightweight design that includes a titanium retainer option, these springs are ideal for high-performance applications where valve control and longevity are critical.
Constructed with an oval/multi-arc wire shape, the springs distribute stress across a larger surface area, promoting better heat dissipation and extending the lifespan of the components. The design enables the springs to handle more aggressive camshaft profiles and increased engine speeds without sacrificing reliability. The top outer diameter measures approximately 1.185 inches, with an inner diameter of about 0.731 inches, providing a balance of strength and flexibility. The spring's seat load and open load specifications ensure proper valve control throughout the engine's operation.
These valve springs are suitable for a variety of high-performance engines and are compatible with a range of retainer options, including steel and titanium. They are designed to fit standard seats and can be paired with shims as needed for precise valvetrain setup. The springs' rate of approximately 420 lbs per inch at 1.150 inches open load ensures robust valve control at high RPMs, making them a reliable choice for racing, street performance, and custom engine builds. The product complies with Prop 65 regulations and is available for immediate purchase, offering a combination of quality, durability, and performance for serious automotive enthusiasts.
Features:
- Unique beehive shape for efficient stress management and harmonic reduction
- Lightweight design with options for titanium or steel retainers
- High RPM capable with increased durability for aggressive cam profiles
- Oval/multi-arc wire shape promotes better heat dissipation and longevity
- Designed for precise valve control with specified seat and open loads
