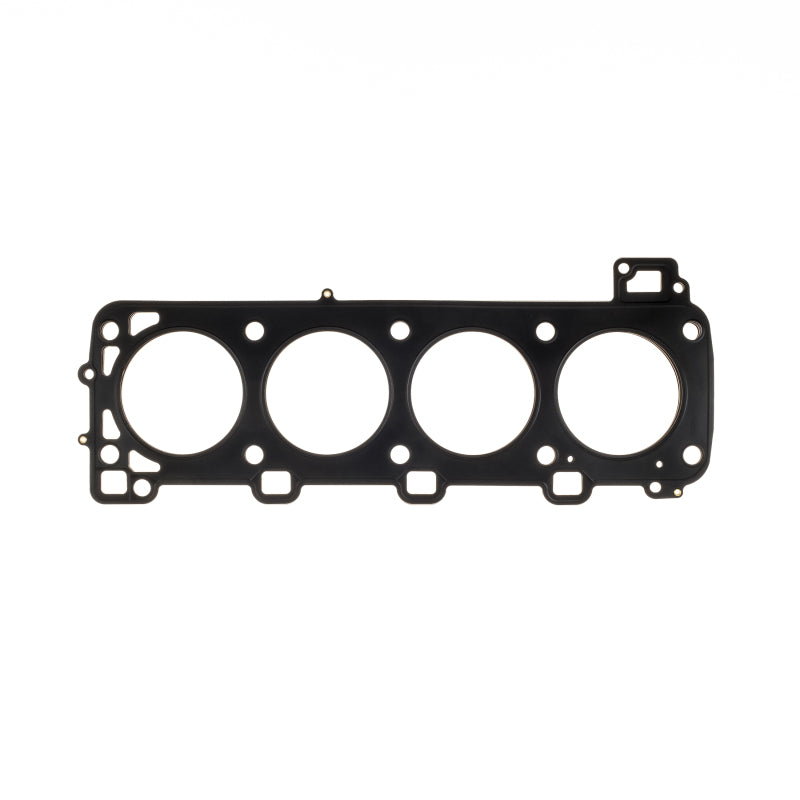

Cometic Porsche M44.07/M44.08/M44.09/M44.10 924 .070in MLS Cylinder Head Gasket - 103mm Bore

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. Porsche M44.07/M44.08/M44.09/M44.10 924; M44.01/M44.02/M44.03/M44.04/M44.05/M44.06/M44.07/M44.08/M44.09/M44.10/M44.40/M44.50/M44.51/M44.52 944 .070in. MLS Cylinder Head Gasket; 103mm Bore

• The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
• The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
• Requires less clamp load creating less bore distortion
• Conforms load distribution across the sealing area
• Embossed Outer Layers Coated w/Viton

The Cometic Gasket Porsche M44.07/M44.08/M44.09/M44.10 924 .070in MLS Cylinder Head Gasket is designed for high-performance engine applications, providing reliable sealing under demanding conditions. Crafted from multiple embossed stainless steel layers, this gasket features outer layers coated with Viton rubber, which offers heat resistance up to 482°F and excellent durability in harsh environments. The compressed operating thickness of 0.036 inches ensures a precise fit while maintaining optimal sealing integrity.
This MLS (Multi-Layer Steel) gasket is suitable for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks, effectively handling the shearing forces generated between different materials. Its multi-layer construction enhances strength, rebound, and corrosion resistance, contributing to engine longevity and performance. The gasket’s uncoated stainless steel shim layer can be adjusted to meet various thickness requirements, allowing for customization based on engine specifications.
Designed specifically for Porsche 944 models from 1983 to 1991, including 924 series, this gasket ensures a secure seal without the need for additional sealants. It reduces bore distortion by requiring less clamp load and promotes even load distribution across the sealing surface. The embossed outer layers meet diverse sealing demands, making it an ideal choice for high-output engines and applications where reliable sealing is critical.
The gasket's construction supports high load conditions and surface finishes, ensuring long-term engine performance. Its compatibility with a range of Porsche 944 variants makes it a versatile choice for restoration, repair, or performance upgrades. Whether restoring an original engine or building a high-performance setup, this gasket delivers the durability and sealing performance necessary for modern automotive demands.

Features:

• Embossed outer layers coated with Viton for heat resistance and durability

• Multi-layer steel construction enhances strength, rebound, and corrosion resistance

• Adjustable shim layer to accommodate different thickness requirements

• Designed for high-output engines with minimal bore distortion

• Ensures even load distribution across sealing surfaces

Fitment:
Honda Civic EX 2016
Honda Civic EX 2017
Honda Civic EX 2018
Honda Civic EX 2019
Honda Civic LX 2016
Honda Civic LX 2017
Honda Civic LX 2018
Honda Civic LX 2019
Honda Civic LX-P 2016
Honda Civic LX-P 2017
Honda Civic LX-P 2018
Honda Civic Sport 2017
Honda Civic Sport 2018
Honda Civic Sport 2019
Honda Civic Type R 2017
Honda Civic Type R 2018
Honda Civic Type R 2019
Porsche 924 S 1987
Porsche 924 S 1988
Porsche 944 Base 1983
Porsche 944 Base 1984
Porsche 944 Base 1985
Porsche 944 Base 1986
Porsche 944 Base 1987
Porsche 944 Base 1988
Porsche 944 Base 1989
Porsche 944 S 1987
Porsche 944 S 1988
Porsche 944 S2 1989
Porsche 944 S2 1990
Porsche 944 S2 1991
Porsche 944 Turbo 1986
Porsche 944 Turbo 1987
Porsche 944 Turbo 1988
Porsche 944 Turbo 1989
Porsche 944 Turbo S 1988
