ACT 04-20 WRX STI Mod Twin XT Race Kit Sprung Hub Torque Cap 1120ft/lbs Not For Street Use
$1,841.00

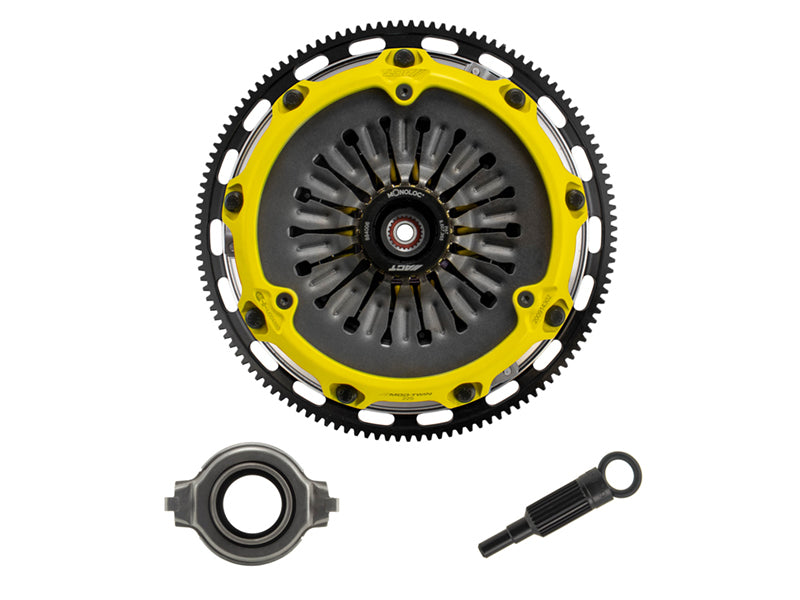

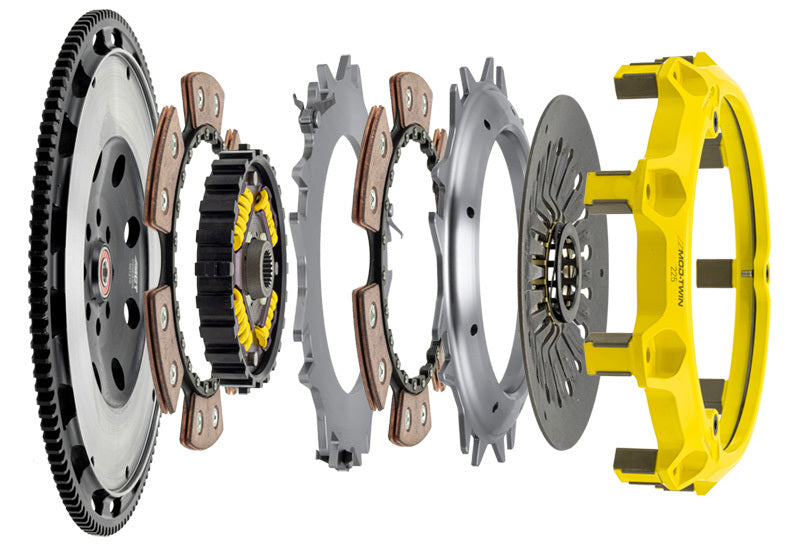

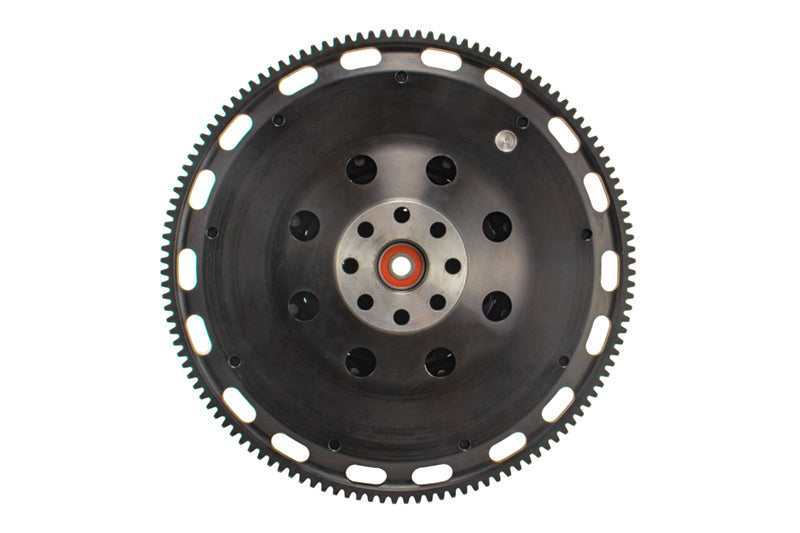

T2R-S05 Mod-Twin 225 XT Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWDa**s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

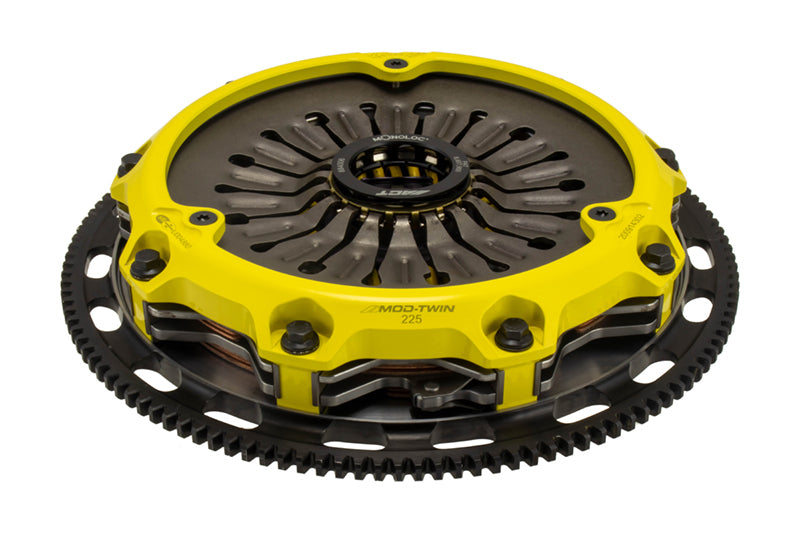

Mod-Twin 225 XT Sprung Race
Predictable aggressive engagement, light pedal effort, quick shifting, possible start-off judder with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
Fitment:
Subaru Impreza WRX STI 2004
Subaru Impreza WRX STI 2005
Subaru Impreza WRX STI 2006
Subaru Impreza WRX STI 2007
Subaru Impreza WRX STI 2008
Subaru Impreza WRX STI 2009
Subaru Impreza WRX STI 2010
Subaru Impreza WRX STI 2011
Subaru Impreza WRX STI 2012
Subaru Impreza WRX STI 2013
Subaru Impreza WRX STI 2014
Subaru Impreza WRX STI Limited 2007
Subaru Impreza WRX STI Limited 2011
Subaru Impreza WRX STI Limited 2012
Subaru Impreza WRX STI Limited 2013
Subaru Impreza WRX STI Limited 2014
Subaru Impreza WRX STI Special Edition 2010
Subaru WRX STI Base 2015
Subaru WRX STI Base 2016
Subaru WRX STI Base 2017
Subaru WRX STI Base 2018
Subaru WRX STI Base 2019
Subaru WRX STI Base 2020
Subaru WRX STI Base 2021
Subaru WRX STI Launch Edition 2015
Subaru WRX STI Limited 2015
Subaru WRX STI Limited 2016
Subaru WRX STI Limited 2017
Subaru WRX STI Limited 2018
Subaru WRX STI Limited 2019
Subaru WRX STI Limited 2020
Subaru WRX STI Limited 2021
Subaru WRX STI S209 2019
Subaru WRX STI Series.HyperBlue 2016
Subaru WRX STI Type RA 2018
